AHU Component Weights

Car Profile

0 comments

  • Accuracy:
    • 0-5000 grams (11.023 LBS) +/- 1g (.0022lbs)
    • 5Kg (11.023 LBS) - 10KG (22.046 LBS) +/- 454g (1 LB)
    • 10KG (22.046 LBS) and up +/- 2.3KG (5 LB)
Part Grams LBS
EGR Cooler 1302 2.8644
EGR Pipes 645 1.419
EGR Hdwr 168 0.3696
Intake Manifold 1884 4.1448
Intake Manifold Gasket 12 0.0264
Intake Manifold Hdwr 132 0.2904
Turbo Oil Feed Line 247 0.5434
Turbo Oil Return Line 242 0.5324
Turbocharger KKK K03 3601 7.9222
Alternator 120A 6660 14.652
Engine Block 38100 83.82
Head - including cam suds 9500 20.9
Cam Caps 299 0.6578
Cam Cap Nuts 64 0.1408
Valve Springs - Dual 361 0.7942
Valve Spring Retainers 147 0.3234
Valve Keepers 18 0.0396
Camshaft 2302 5.0644
Camshaft Bolt 92 0.2024
Camshaft Sprocket 734 1.6148
Glow Plugs 96 0.2112
Injectors 1011 2.2242
Injector Hold Downs Hdwr 388 0.8536
Lift Point - bolts to head 185 0.407
Valvecover Nuts/Washers 52 0.1144
Valvecover Grommets 0
Connecting Rod 680g Ea 2720 5.984
Connecting Rod Bearings 34g ea 136 0.2992
Piston Pin 207g ea 828 1.8216

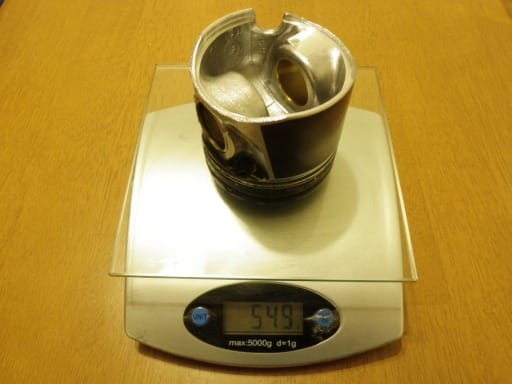

Piston 549g ea 2196 4.8312
Piston Rings 31g/Piston 124 0.2728
Crank Shaft (W/Trigger Whl) 16300 35.86
Vacuum Pump Hold Down 89 0.1958
Oil Pressure Sender (on head) 31 0.0682
Intermediate Shaft 1556 3.4232
Intermediate Shaft Bolt 49 0.1078
Intermediate Shaft Pulley 223 0.4906
Intermediate Shaft Cover+Seal 207 0.4554
CCV Puck 76 0.1672
Oil Pickup Tube 142 0.3124
Injection Pump Sprocket 813 1.7886
Injection Pump Bracket 2277 5.0094
Vibration Damper Bolts 84 0.1848
Vibration Damper 1662 3.6564
Vibration Damper V-Pullley 254 0.5588
Engine Cover Bracket (on H20 outl 140 0.308
Injector Lines 379 0.8338
Vacuum Pump 1550 3.41
Small H2O Dist Hoses - front of b 146 0.3212
Serpantene Tensioner + HWDR 3143 6.9146
Serpantene Belt - non A/C 128 0.2816
Timing Belt 152 0.3344
Air Box Top W/ MAF 800 1.76
Air Box Bottom 746 1.6412
N75 106 0.2332
EGR Sol Vlv 72 0.1584
Oil Cooler/heat exhanger 442 0.9724
Starter (5-speed) 4200 9.24
Injection Pump and Hdwr 6600 14.52
H2O Pipe Hard 525 1.155
Head Bolts 1090 2.398
Power steer HP Line 505 1.111
Head to heater core H2O Pipe 127 0.2794
Oil Filter Flange 549 1.2078
Lower Timing Cover 246 0.5412
Flywheel Bolts 148 0.3256
H2O Pump + Lines & HWDR 2947 6.4834
Trans Side engine plate 353 0.7766
Boost Pipes 1393 3.0646
Valve Cover 1431 3.1482
Exhaust Manifold 3488 7.6736
Power Stering Pump + BRKTS 4678 10.2916
Rear Mototr Mount Bracket 980 2.156
Crank Sprocket (timing) 459 1.0098
Crank Bolt 93 0.2046
Main Caps + HWDR 2587 5.6914
Front Main seal/cover 211 0.4642
Rear main seal/cover 184 0.4048
Crank Position Sensor 110 0.242
Main Bearings 252 0.5544
Thrust Bearings 36 0.0792
Dipstick Tube 86 0.1892
Oil Pan 2649 5.8278
Oil Jets 58 0.1276
Oil Pump + HWDR 1025 2.255
Flywheel 9500 20.9
Wiring Harness - engine 6300 13.86
Misc HRDWR - leftovers… 863 1.8986
