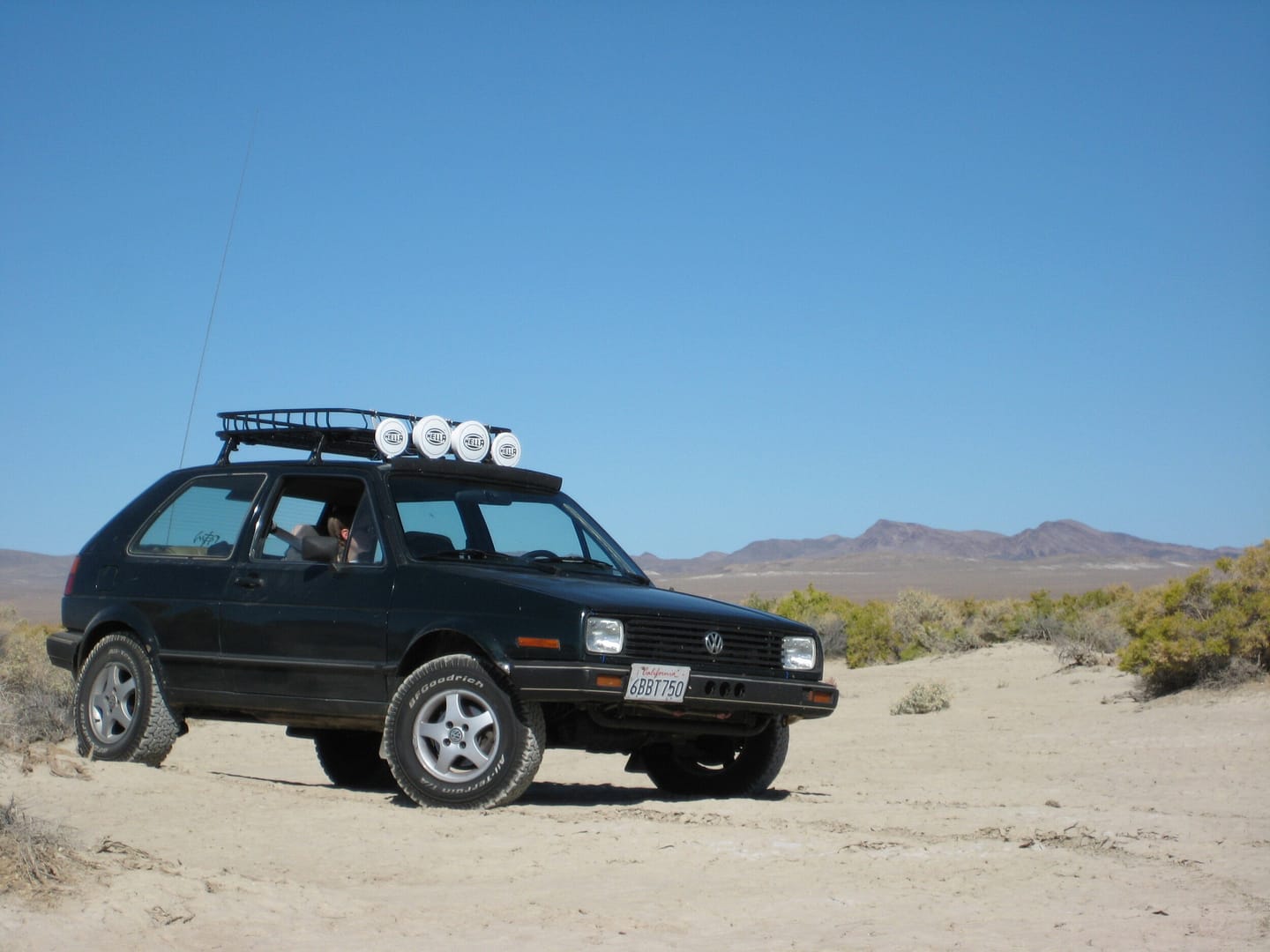

1986 VW Golf Diesel with AHU TDI Swap and FRANKENBUILT lift

• Owner:
  • David
• Video Playlist:
  • Lifted 1986 VW Golf TDI Swap off-road video playlist
• Fuel Economy:
  • Best Tank: 58
  • Average: 42
  • Worst Tank: 36
• Engine:
  • MK3 TDI (AHU)
  • ARP Head studs
  • Upsolute Stage 2 Chip
  • K03/K04 Hybrid Turbo
  • Kerma PP764 Injectors
  • Custom VR6 Corrado/ G60 Corrado/ MK3 TDI Hybrid Air box & OEM VW Filter.
  • Mann Hummel Pro-Vent 200 Crank Case Vent Filter
  • EVRY mod, 2 position
  • Bleached Bora Downpipe
  • TT 2.5" Downpipe back
  • Mk3 radiator, Mk3 dual fans
  • 3x11x27" Front mount intercooler
  • Mocal thermostatic oil cooler
  • a/c delete
  • Power Steering Deleted
• Suspension/Drive train:
  • Mk3 TDI transmission (CTN Code)
  • FRANKENBUILT Lift Kit
  • Additional FRANKENBUILT 1" rear lift (to compensate for load)
  • VR6 Strut bearings front
  • Passat 16V A-Arms
  • Mk3 CV shafts
  • R32 suspension bushings
  • MK3 Golf CL Tie rods
  • Rear Corrado beam
• Brakes:
  • Corrado booster & Master cylinder
  • Mk3 10.1 Front Zimmerman Drilled rotors. PBR metal master pads
  • Mk3 8.9" Rear Zimmerman Drilled rotors. PBR metal master pads
• Wheels/Tires:
  • Winter (Mud):
    • MKII Teardrop Wheels (14x6 et 38)
    • Kumho Road Venture M/T 27x8.5R14
  • Summer (dirt/sand/gravel/rock):
    • MKIII Flyer Wheels (14x6 et 45)
    • BF Goodrich All Terrain T/A 27x8.5R14
• Stereo:
  • C.B. 🙂
  • The sweet sound of a TDI
• Interior:
  • Rallye golf non-a/c passenger side under-dash pocket
  • European CE2 driver side under-dash pocket
  • MKIV shift knob & boot
  • CB radio recessed in console
  • MKIII Gauge cluster
  • Radio delete Gauge panel (3 Gauges)
  • EGT Gauge (1650 Deg F)
  • Boost Gauge (30psi)
  • Oil Temp Gauge
  • Corrado pedal assembly modified for DBW
• Exterior:
  • Front fenders Cut off below centerline of bumper, forward of wheel opening
  • Front pan removed
  • All fenders trimmed to clear tires
  • Remaining fender lip rolled for clearance
  • Custom class 2 hitch
  • 108" CB antenna
  • Front bumper modified to allow airflow to oil cooler & intercooler
  • MKIII style door handles
  • Thule Load Bars & Gutter mounts
  • Valley Industries roof basket
  • 2x Hella 700FF lights (on roof)
  • 2x Hella 500FF lights (on roof)
  • Windshield brow (to keep light off windshield)
  • Hella E-Code H4 Westy lights w/HID
  • 35W Backup Lights
  • Mud Flaps
  • P.A. speaker (its hiding)
• Misc:
  • FRANKENBUILT front crossmember to hold Mk3 Front motor mount, Radiator & large FMIC
  • MK2/MK3 Hybrid CE2 Harness with many added features
  • Isolated Trailer Wiring
  • 100A Fused Distribution to feed all accessories (CB, Lights, Trailer...)
  • 40 amp Fused & Relayed supply to roof through trolling motor connector controlled by extra OEM fog light switch for lights
  • Blinking Banana light mod.
  • Hid Ballasts & Relays.
  • FRANKENBUILT Turbo Cool down Idle Controller (Pyrometer Based)
